Stabilizer link Masuma, ML-9009
Article:
ML-9009
About product
Applicability
OEM
LX450
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.5L 1FZ-FE. FZJ80L. USA | 1995.11-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive |
LAND CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| HDJ81V | 1992.08-1995.01 | 4.2L DIESEL 1HD-T (165 PS / 121 kW) Four-wheel drive (4WD). Right Hand Drive |
| HDJ81V | 1992.08-1995.01 | 4.2L DIESEL 1HD-T (165 PS / 121 kW) Four-wheel drive (4WD). Right Hand Drive |
| HDJ80L | 1992.08-1995.01 | 4.2L DIESEL 1HD-T (167 PS / 123 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ80L | 1992.08-1995.01 | 4.2L DIESEL 1HD-T (167 PS / 123 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ80L | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ80L | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ80L | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ80G | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ80G | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ80L | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (292 PS / 215 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ80L | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (292 PS / 215 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ80L | 1995.01-1998.01 | 4.2L DIESEL 1HD-FT (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ80L | 1995.01-1998.01 | 4.2L DIESEL 1HD-FT (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ81V | 1995.01-1998.01 | 4.2L DIESEL 1HD-FT (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| HDJ81V | 1995.01-1998.01 | 4.2L DIESEL 1HD-FT (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ78R | 1999.08-2006.05 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ79R | 1999.08-2006.05 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ71L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ74L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive Soft Top |
| FZJ71L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (211 PS / 155 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ71R | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (211 PS / 155 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ78L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ79L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ74L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive Soft Top |
| FZJ78R | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ79R | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ78L | 1999.08-2007.01 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 159 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ79L | 1999.08-2008.08 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ78R | 2001.08-2007.01 | 4.2L DIESEL 1HD-FTE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Right Hand Drive |
| HDJ79R | 2001.08-2007.07 | 4.2L DIESEL 1HD-FTE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Right Hand Drive |
| VDJ76R | 2007.01-2009.04 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| VDJ78R | 2007.01-2009.04 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| VDJ79R | 2007.01-2009.04 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ76L | 2007.01-2009.04 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 159 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ76L | 2007.01-2009.07 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ76L | 2009.04-2009.07 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 156 kW) Four-wheel drive (4WD). Left Hand Drive |
| FZJ76L | 2009.04-2009.07 | 4.5L GASOLINE 1FZ-FE EFI (212 PS / 159 kW) Four-wheel drive (4WD). Left Hand Drive |
| VDJ76R | 2009.04-2021.12 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| VDJ78R | 2009.04-2021.12 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| VDJ79R | 2009.04-2021.12 | 4.5L DIESEL 1VD-FTV EFI (217 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ71R | 2009.07-2012.08 | 4.0L GASOLINE 1GR-FE EFI (228 PS / 168 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ78R | 2009.07-2012.08 | 4.0L GASOLINE 1GR-FE EFI (228 PS / 168 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ71L | 2009.07-2021.12 | 4.0L GASOLINE 1GR-FE EFI (228 PS / 168 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ78L | 2009.07-2021.12 | 4.0L GASOLINE 1GR-FE EFI (228 PS / 168 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ79L | 2009.07-2021.12 | 4.0L GASOLINE 1GR-FE EFI (228 PS / 168 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ79R | 2009.07-2021.12 | 4.0L GASOLINE 1GR-FE EFI (231 PS / 170 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71 | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71 | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71L | 1999.08-2001.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive HT [HARDTOP] |
| HZJ71L | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ71R | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74L | 1999.08-2001.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive HT [HARDTOP] |
| HZJ74V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76L | 2007.01-2009.04 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ76L | 2007.01-2009.04 | 4.2L DIESEL 1HZ (131 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ76L | 2009.04-2016.12 | 4.2L DIESEL 1HZ (131 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ76L | 2009.04-2021.12 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ76R | 2007.01-2009.04 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76R | 2009.04-2021.12 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ78L | 1999.08-2001.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive HT [HARDTOP] |
| HZJ78L | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ78L | 2007.01-2009.04 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ78L | 2009.04-2016.12 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ78R | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ79 | 1999.11-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ79 | 1999.11-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ79L | 1999.08-2001.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive PIC [PICKUP] |
| HZJ79L | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ79L | 1999.08-2007.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ79R | 1999.08-2007.01 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ80L | 1992.08-1998.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ80L | 1992.08-1998.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Left Hand Drive |
| HZJ81V | 1992.08-1998.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ81V | 1992.08-1998.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |

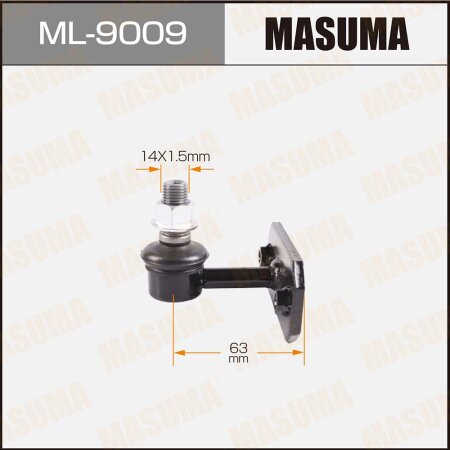

Specifications:
Length: 63
Rod/Strut: Coupling Rod
Side: Front LH and RH
Thread: 14x1.5mm
Rod/Strut: Coupling Rod
Side: Front LH and RH
Thread: 14x1.5mm
Masuma stabilizer bar links are notable for the high strength of their ball joint. It is detemined by a special pressing method during the production, with pouring the swivel joint using the polyoxymethylene polymer (POM 500P). A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel.
