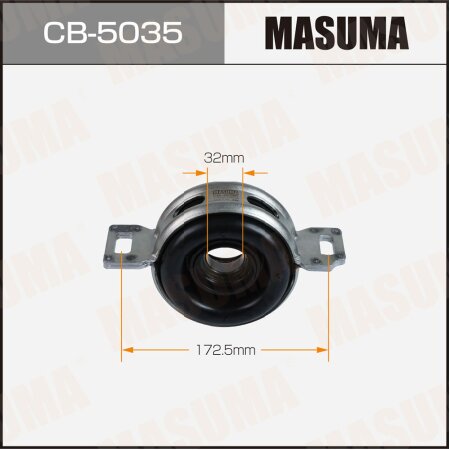

Hanger bearings, CB-5035
This spare part fits on cars TOYOTA
FORTUNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GUN165L | 2016.01-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| TGN166L | 2016.01-2020.05 | 2.7L GASOLINE 2TRFE EFI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| GUN165L | 2019.11-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| TGN166L | 2019.11-2020.05 | 2.7L GASOLINE 2TRFE EFI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive GENERAL |
HILUX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GUN125L | 2015.06-2018.07 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN135L | 2015.06-2018.07 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| GUN126L | 2015.06-2018.07 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN125L | 2019.11-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN135L | 2019.11-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| GUN126L | 2019.11-2020.05 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN125L | 2020.06-... | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN126L | 2020.06-... | 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN125L | 2020.09-... | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN126L | 2020.09-... | 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
Masuma hanger bearings (center support bearings) are designed to precisely match OEM geometry, making installation straightforward and ensuring reliable operation. High-quality materials are used in production:
- Inner and outer bearing rings are manufactured from GCr15 steel, known for its hardness, wear resistance, and dimensional stability under prolonged loads.
- The bearing housing is made of 6061-T6 aluminum alloy or ST12 steel, depending on the application. 6061-T6 offers light weight combined with high strength, while ST12 provides additional rigidity for heavy-duty conditions.
- The seal ring, made from NBR (nitrile butadiene rubber), effectively protects the bearing from dust, dirt, and moisture, while maintaining elasticity even at low temperatures.
- The elastic damping sleeve is produced from natural rubber (NR), which provides excellent vibration absorption and resistance to aging.
