Complete product catalogue

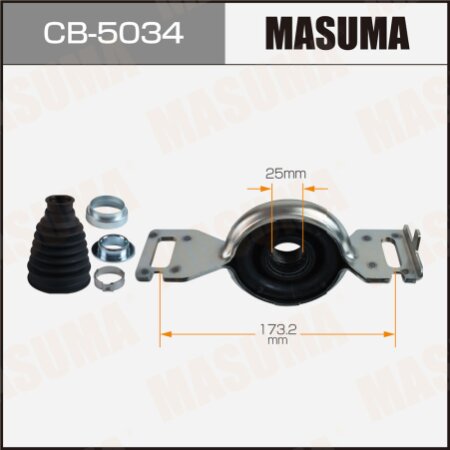

Hanger bearings, CB-5034
NX200
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZGZ15L | 2014.10-2021.01 | 2.0L GASOLINE 3ZRFAE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
NX200T
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AGZ15 | 2014.07-2017.08 | 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive |
| AGZ15L | 2014.12-2017.09 | 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
NX300
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AGZ15L | 2017.09-... | 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
| AGZ15 | 2017.09-2021.10 | 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive |
NX300H
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AGZ15L | 2014.10-... | 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
HARRIER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSU65W | 2013.12-2020.05 | 2.0L GASOLINE 3ZRFAE EFI (151 PS / 111 kW) Front-wheel drive. Right Hand Drive |
| ASU65W | 2017.05-2020.05 | 2.0L GASOLINE 8ARFTS D-4S (245 PS / 180 kW) Front-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACA33L | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| ACA33L | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| ACA31W | 2005.11-2016.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| GSA33L | 2006.01-2012.12 | 3.5L GASOLINE 2GRFE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| ASA33L | 2008.11-2013.01 | 2.5L GASOLINE 2ARFE EFI (179 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| GSA33L | 2008.11-2013.01 | 3.5L GASOLINE 2GRFE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| ASA44L | 2012.12-2018.10 | 2.5L GASOLINE 2ARFE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| ASA44L | 2013.01-2018.10 | 2.5L GASOLINE 2ARFE EFI (176 PS / 129 kW) Four-wheel drive (4WD). Left Hand Drive |
VANGUARD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GSA33W | 2007.08-2012.12 | 3.5L GASOLINE 2GRFE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA33W | 2007.08-2013.11 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
Masuma hanger bearings (center support bearings) are designed to precisely match OEM geometry, making installation straightforward and ensuring reliable operation. High-quality materials are used in production:
- Inner and outer bearing rings are manufactured from GCr15 steel, known for its hardness, wear resistance, and dimensional stability under prolonged loads.
- The bearing housing is made of 6061-T6 aluminum alloy or ST12 steel, depending on the application. 6061-T6 offers light weight combined with high strength, while ST12 provides additional rigidity for heavy-duty conditions.
- The seal ring, made from NBR (nitrile butadiene rubber), effectively protects the bearing from dust, dirt, and moisture, while maintaining elasticity even at low temperatures.
- The elastic damping sleeve is produced from natural rubber (NR), which provides excellent vibration absorption and resistance to aging.
