Drive shaft Masuma, DS-1502L
IS250
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 4GR-FSE. GSE20L. USA | 2005.09-2010.09 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Rear-wheel drive. Left Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2008.08-2010.09 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE25 | 2010.09-2013.04 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GSE20 | 2010.09-2013.04 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Rear-wheel drive. Right Hand Drive |
| 2.5L 4GR-FSE. GSE20L. EUR | 2010.09-2013.04 | 2.5L GASOLINE 4GR-FSE EFI (204 PS / 158 kW) Rear-wheel drive. Left Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2010.09-2013.04 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE20L. USA | 2010.09-2013.04 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Rear-wheel drive. Left Hand Drive |
IS250C
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 4GR-FSE. GSE20L. USA | 2009.04-2010.08 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Rear-wheel drive. Left Hand Drive |
| 2.5L 4GR-FSE. GSE20 | 2010.09-2014.08 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Rear-wheel drive. Right Hand Drive |
| 2.5L 4GR-FSE. GSE20L. USA | 2010.09-2015.07 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Rear-wheel drive. Left Hand Drive |
| 2.5L 4GR-FSE. GSE20L. EUR | 2010.09-2015.07 | 2.5L GASOLINE 4GR-FSE EFI (215 PS / 158 kW) Rear-wheel drive. Left Hand Drive |
MARK X
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRX120 | 2004.11-2009.09 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Rear-wheel drive. Right Hand Drive |
| GRX121 | 2004.11-2009.09 | 3.0L GASOLINE 3GR-FSE D-4 (256 PS / 188 kW) Rear-wheel drive. Right Hand Drive |
| GRX135 | 2010.09-2019.12 | 2.5L GASOLINE 4GR-FSE D-4 Four-wheel drive (4WD). Right Hand Drive |
| GRX130 | 2010.09-2019.12 | 2.5L GASOLINE 4GR-FSE D-4 Rear-wheel drive. Right Hand Drive |

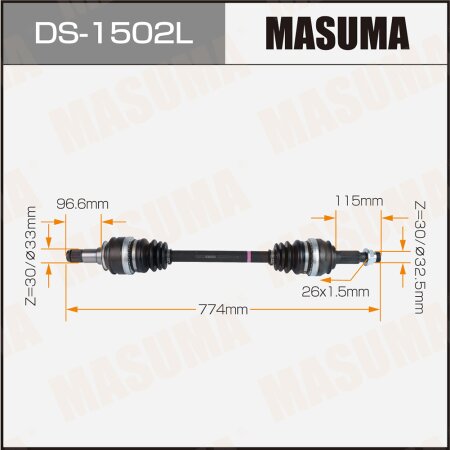

Specifications:
Shaft length of external ball joint: 115
Shaft length of the inner ball joint: 96.6
Number of splines on differential side: 30
Number of splines on wheel side: 30
Masuma drive shafts ensure smooth and consistent torque delivery with no unwanted noise or vibration. Manufactured from high-strength 55-grade carbon structural steel, each shaft is engineered to meet OEM specifications precisely.
All Masuma drive shafts undergo rigorous factory testing, including torsional strength, shear resistance, and dynamic balance to eliminate runout.
Each assembly is fully prepped for installation — pre-lubricated CV joints are filled with high-quality lithium grease and sealed with durable, flexible rubber boots secured by heavy-duty clamps. No additional preparation is required before mounting.
