Drive shaft Masuma, DS-1023
Article:
DS-1023
About product
Applicability
OEM
This spare part fits on cars TOYOTA
HILUX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| KUN25R. THAI | 2004.08-2008.08 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| KUN26R. THAI | 2004.08-2008.08 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| KUN25R. THAI | 2004.08-2011.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. THAI | 2004.08-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26L. PHIL | 2004.11-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26R. THAI | 2005.01-2008.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| TGN26R. THAI | 2005.01-2008.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| KUN25R. GEN | 2005.02-2011.07 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. GEN | 2005.02-2011.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. GEN | 2005.02-2011.07 | 2.5L DIESEL 2KD-FTV (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26L. GEN | 2005.02-2011.07 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26R. AUS | 2005.02-2011.07 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| KUN26R. AUS | 2005.02-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. AUS | 2005.02-2011.07 | 3.0L DIESEL 1KD-FTV (177 PS / 130 kW) Four-wheel drive (4WD). Right Hand Drive |
| GGN25R. AUS | 2005.02-2011.07 | 4.0L GASOLINE 1GR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| GGN25R. AUS | 2005.02-2011.07 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |
| GGN25R. AUS | 2005.02-2011.07 | 4.0L GASOLINE 1GR-FE EFI (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. MAL | 2005.03-2008.09 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. MAL | 2005.03-2008.09 | 2.5L DIESEL 2KD-FTV (128 PS / 94 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. SOU AFR | 2005.04-2008.10 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. SOU AFR | 2005.04-2008.10 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| TGN26R. SOU AFR | 2005.04-2008.10 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. SOU AFR | 2005.04-2008.10 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| GGN25R. SOU AFR | 2005.04-2008.10 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. EUR | 2005.07-2006.08 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2005.07-2006.08 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2005.07-2006.08 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2005.07-2006.08 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. GEN | 2005.07-2011.07 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26L. GEN | 2005.07-2011.07 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26L. GEN | 2005.07-2011.07 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2006.08-2010.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2006.08-2010.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2006.08-2010.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. EUR | 2006.08-2010.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26L. EUR | 2006.10-2010.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26L. EUR | 2006.10-2010.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. GEN | 2007.08-2011.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26L. GEN | 2007.08-2011.07 | 3.0L DIESEL 1KD-FTV (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25R. THAI | 2008.09-2010.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive Smart Cab |
| KUN26R. THAI | 2008.09-2010.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive Smart Cab |
| KUN25R. THAI | 2008.09-2011.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive Smart Cab |
| KUN26R. THAI | 2008.09-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive Smart Cab |
| KUN26R. SOU AFR | 2008.10-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. INDNS | 2009.01-2011.07 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. GEN | 2010.08-2010.11 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. SOU AFR | 2010.08-2010.11 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive Long Cab |
| KUN26R. GEN | 2010.08-2011.07 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25R. PAK | 2010.10-2011.07 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive |
| TGN26R. SOU AFR | 2010.12-2008.10 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. SOU AFR | 2010.12-2011.05 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25R. SOU AFR | 2010.12-2011.05 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. SOU AFR | 2010.12-2011.05 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25R. SOU AFR | 2010.12-2011.05 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| TGN26L. SOU AFR | 2010.12-2011.05 | 2.7L GASOLINE 2TR-FE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26R. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| LAN25L. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Left Hand Drive |
| LAN25L. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Left Hand Drive |
| LAN25R. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| LAN25R. SOU AFR | 2010.12-2011.05 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| GGN25R. SOU AFR | 2010.12-2011.05 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. COL | 2010.12-2012.02 | 2.5L DIESEL 2KD-FTV (120 PS / 88 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26L. COL | 2010.12-2012.02 | 2.7L GASOLINE 2TR-FE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN26L. COL | 2010.12-2012.02 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| GGN25L. COL | 2010.12-2012.02 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25L. SOU AFR | 2011.05-2011.07 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25R. SOU AFR | 2011.05-2011.07 | 2.5L DIESEL 2KD-FTV (102 PS / 75 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN25L. SOU AFR | 2011.05-2011.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN25R. SOU AFR | 2011.05-2011.07 | 2.5L DIESEL 2KD-FTV (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| TGN26L. SOU AFR | 2011.05-2011.07 | 2.7L GASOLINE 2TR-FE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| KUN26R. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| KUN26R. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 1KD-FTV (171 PS / 126 kW) Four-wheel drive (4WD). Right Hand Drive |
| LAN25L. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Left Hand Drive |
| LAN25L. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Left Hand Drive |
| LAN25R. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| LAN25R. SOU AFR | 2011.05-2011.07 | 3.0L DIESEL 5L-E (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| GGN25R. SOU AFR | 2011.05-2011.07 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |

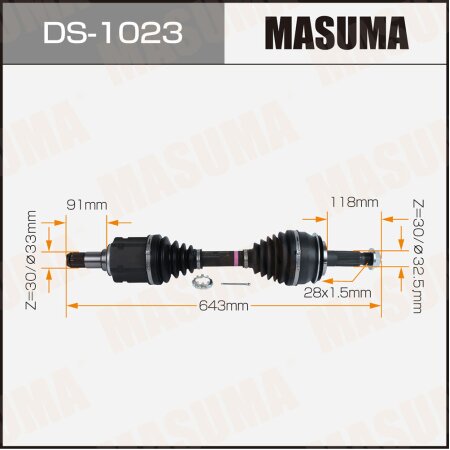

Specifications:
Side: ;
Total length: 643
Shaft length of external ball joint: 118
Shaft length of the inner ball joint: 91
Number of splines on differential side: 30
Number of splines on wheel side: 30
Total length: 643
Shaft length of external ball joint: 118
Shaft length of the inner ball joint: 91
Number of splines on differential side: 30
Number of splines on wheel side: 30
Masuma drive shafts ensure smooth and consistent torque delivery with no unwanted noise or vibration. Manufactured from high-strength 55-grade carbon structural steel, each shaft is engineered to meet OEM specifications precisely.
All Masuma drive shafts undergo rigorous factory testing, including torsional strength, shear resistance, and dynamic balance to eliminate runout.
Each assembly is fully prepped for installation — pre-lubricated CV joints are filled with high-quality lithium grease and sealed with durable, flexible rubber boots secured by heavy-duty clamps. No additional preparation is required before mounting.
