Clutch disc Masuma, TYD123U
Article:
TYD123U
About product
Applicability
OEM
This spare part fits on cars TOYOTA
AVENSIS VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 1AZ-FE. ACM20L. EUR | 2001.05-2005.07 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive EUR |
CALDINA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. ST195G | 1992.11-1997.08 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-GE. ST195G | 1995.02-1997.08 | 2.0L GASOLINE 3S-GE EFI (190 PS / 140 kW) Four-wheel drive (4WD). Right Hand Drive |
CAMRY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. SV35 | 1990.07-1994.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SV43 | 1994.06-1998.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2AZ-FE. ACV30L. EUR | 2001.08-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| 2.4L 2AZ-FE. ACV30L. EUR | 2005.11-2006.01 | 2.4L GASOLINE 2AZ-FE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
CARINA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. ST195 | 1992.08-1996.08 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. ST215 | 1996.08-1998.08 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
CORONA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. ST195 | 1992.02-1996.01 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
CORONA PREMIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. ST215 | 1996.12-1997.12 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
DYNA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3Y. YY101 | 1996.10-1997.09 | 2.0L GASOLINE 3Y CARBURETOR (86 PS / 63 kW) Rear-wheel drive. Right Hand Drive |
| 2.0L 3Y. YY101 | 1996.10-1997.09 | 2.0L GASOLINE 3Y CARBURETOR (86 PS / 63 kW) Rear-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. SXA10G | 1994.04-2000.05 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SXA11G | 1995.04-2000.05 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-GE. SXA11W | 1996.08-2000.05 | 2.0L GASOLINE 3S-GE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-GE. SXA10W | 1996.08-2000.05 | 2.0L GASOLINE 3S-GE EFI (165 PS / 121 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SXA15G | 1997.09-2000.05 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3S-FE. SXA16G | 1997.09-2000.05 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3S-FE. SXA10C | 1997.12-2000.05 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FE. ACA20L. EUR | 2000.05-2005.10 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA21L. EUR | 2000.05-2005.10 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FSE. ACA20W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FSE. ACA21W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.0L 1AZ-FE. ACA21L. USA | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.0L 1AZ-FE. ACA26L. USA | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (148 PS / 109 kW) Front-wheel drive. Left Hand Drive USA |
| 2.0L 1AZ-FE. ACA20L. GEN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.0L 1AZ-FE. ACA20L. GCC | 2000.08-2005.10 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GCC | 2000.08-2005.10 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GEN | 2000.08-2005.10 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA23L. CAN | 2003.07-2005.10 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.4L 2AZ-FE. ACA23L. USA | 2003.07-2005.10 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.4L 2AZ-FE. ACA28L. USA | 2003.07-2005.10 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Front-wheel drive. Left Hand Drive USA |
| 2.0L 1AZ-FE. ACA20L. EUR | 2005.10-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA21L. EUR | 2005.10-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA20L. GCC | 2005.10-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GCC | 2005.10-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GEN | 2005.10-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA23L. CAN | 2005.10-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.4L 2AZ-FE. ACA23L. USA | 2005.10-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.4L 2AZ-FE. ACA28L. USA | 2005.10-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Front-wheel drive. Left Hand Drive USA |
TOYOACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3Y. YY101 | 1996.10-1997.09 | 2.0L GASOLINE 3Y CARBURETOR (86 PS / 63 kW) Rear-wheel drive. Right Hand Drive |
| 2.0L 3Y. YY101 | 1996.10-1997.09 | 2.0L GASOLINE 3Y CARBURETOR (86 PS / 63 kW) Rear-wheel drive. Right Hand Drive |
VISTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3S-FE. SV35 | 1990.07-1994.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SV35 | 1990.07-1994.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SV43 | 1994.06-1998.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 3S-FE. SV43 | 1994.06-1998.06 | 2.0L GASOLINE 3S-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |

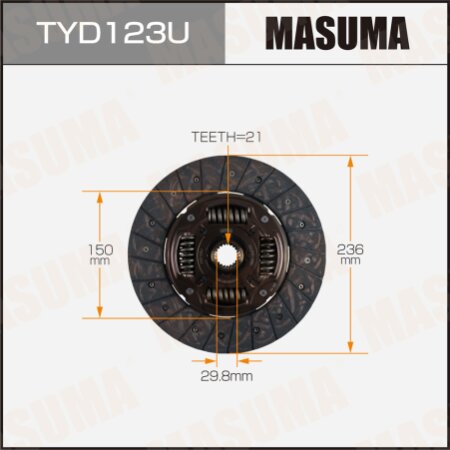

Specifications:
D1, Outer diameter: 236 mm
D2, Inner diameter: 150 mm
d, Transmission input shaft diameter: 29.8 mm
N, Number of shaft splines: 21
D2, Inner diameter: 150 mm
d, Transmission input shaft diameter: 29.8 mm
N, Number of shaft splines: 21
The key feature of the friction pads of the Masuma clutch disks is that the stud holes are created at the stage of "stoving" in special molds. The riffled surface facilitates better self-cleaning of the disk from the wearing products, as well as seamless clutch setting in the beginning of driving.
The oval-woven pads increase the durability of the assembly and ensure its work during up to 10 million cycles. Every Masuma clutch disk undergoes the mandatory factory balancing and control tests: geometry measurements, torque value and hysteresis.
Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).
