Brake shoes Masuma, MK-9958
Article:
MK-9958
About product
Applicability
OEM
PROCEED LEVANTE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TF52W | 1997.11-1999.01 | 2.0L GASOLINE J20A EPI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| TF52W | 1999.01-1999.10 | 2.0L GASOLINE J20A EPI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ32W | 1998.02-1999.01 | 2.0L DIESEL RF (92 PS / 68 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ32W | 1999.01-1999.10 | 2.0L DIESEL RF (92 PS / 68 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ52W | 1997.11-1999.01 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ52W | 1999.01-1999.10 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ62W | 1998.02-1999.01 | 2.5L GASOLINE H25A EPI (165 PS / 121 kW) Four-wheel drive (4WD). Right Hand Drive |
| TJ62W | 1999.01-1999.10 | 2.5L GASOLINE H25A EPI (165 PS / 121 kW) Four-wheel drive (4WD). Right Hand Drive |
ESCUDO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TA02W | 1997.11-2002.09 | 1.6L GASOLINE G16A EPI (107 PS / 79 kW) Four-wheel drive (4WD). Right Hand Drive |
| TA02W | 2000.04-2002.09 | 1.6L GASOLINE G16A EPI (107 PS / 79 kW) Rear-wheel drive. Right Hand Drive |
| TA52W | 1997.11-2002.09 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD02W | 1997.11-2000.04 | 1.6L GASOLINE G16A EPI (107 PS / 79 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD32W | 1998.02-2000.04 | 2.0L DIESEL RF (92 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD52W | 1997.11-2000.04 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD62W | 1998.02-2002.11 | 2.5L GASOLINE H25A EPI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD62W | 2002.11-2003.06 | 2.5L GASOLINE H25A EPI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| TL52W | 1998.11-2002.11 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TL52W | 2002.11-2004.02 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| TL52W | 2004.02-2005.02 | 2.0L GASOLINE J20A EPI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
GRAND VITARA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SQ416Q. MY01-04. 1600cc. 3D. G16B. 4WD. Conv. | 2001.01-2004.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ416Q. MY99-00. 1600cc. 3D. G16B. 4WD. Conv. | 1999.01-1999.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ416Q. MY99-00. 1600cc. 3D. G16B. 4WD. Conv. | 2000.01-2000.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ416V-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416V-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416V-3. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416V. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416X-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416X-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416X-3. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420Q. MY01-04. 2000cc. 3D. J20A. 4WD. Conv. | 2001.01-2004.12 | 2.0L GASOLINE J20A MPI Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ420Q. MY99-00. 2000cc. 3D. J20A. 4WD. Conv. | 1999.01-1999.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ420Q. MY99-00. 2000cc. 3D. J20A. 4WD. Conv. | 2000.01-2000.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ420V-2. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420V-2. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420V. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420W-2. 2000cc. 5D. J20A. 4WD. | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420W-2. 2000cc. 5D. J20A. 4WD. | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420W-3. 2000cc. 5D. J20A. 4WD. | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420W-3. 2000cc. 5D. J20A. 4WD. | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420W. 2000cc. 5D. J20A. 4WD. | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-2. 2000cc. 5D. RFM. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RFM (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-2. 2000cc. 5D. RFM. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RFM (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-2. 2000cc. 5D. RHZ. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RHZ (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-2. 2000cc. 5D. RHZ. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RHZ (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-3. 2000cc. 5D. RHW. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RHW (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD-3. 2000cc. 5D. RHW. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RHW (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420WD. 2000cc. 5D. RFM. Turbo. Диз. 4WD. | 1999.01-2005.12 | 2.0L DIESEL RFM (87 PS / 64 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ420X-2. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420X-2. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420X-3. 2000cc. 3D. J20A. 4WD. Van | 1999.01-2005.12 | 2.0L GASOLINE J20A MPI (128 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ420XD-3. 2000cc. 3D. RHW. Turbo. Диз. 4WD. Van | 1999.01-2005.12 | 2.0L DIESEL RHW (109 PS / 80 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ625W-2. 2500cc. 5D. H25A. 4WD. | 1999.01-2005.12 | 2.5L GASOLINE H25A MPI (157 PS / 115 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ625W-2. 2500cc. 5D. H25A. 4WD. | 1999.01-2005.12 | 2.5L GASOLINE H25A MPI (157 PS / 115 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ625W-3. 2500cc. 5D. H25A. 4WD. | 1999.01-2005.12 | 2.5L GASOLINE H25A MPI (157 PS / 115 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ625W-3. 2500cc. 5D. H25A. 4WD. | 1999.01-2005.12 | 2.5L GASOLINE H25A MPI (157 PS / 115 kW) Four-wheel drive (4WD). Left Hand Drive |
| SQ625W. 2500cc. 5D. H25A. 4WD. | 1999.01-2005.12 | 2.5L GASOLINE H25A MPI (157 PS / 115 kW) Four-wheel drive (4WD). Left Hand Drive |

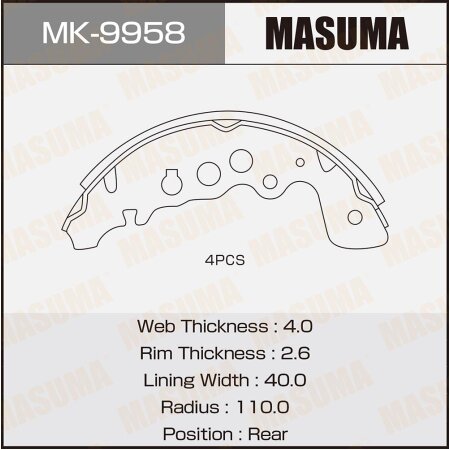

Specifications:
A, Thickness: 4 mm
B, Thickness: 2.6 mm
C, Width: 40 mm
R, Radius: 110 mm
B, Thickness: 2.6 mm
C, Width: 40 mm
R, Radius: 110 mm
Masuma brake shoes are produced by the Semi-Metallic technologies using modern equipment consistent with all the recent developments in braking systems. Purposely selected friction materials ensure the shortest stopping distance, smooth and efficient braking, small and uniform wearing of the braking shoe, which doesn't produce squeak, whistle and vibration.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
