Complete product catalogue
Brake shoes Masuma, MK-2280
PATROL
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| Y60. 2800cc. 3D. RD28T. Turbo. Диз. 4WD | 1988.09-1991.10 | 2.8L DIESEL RD28T (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive PATROL GR |
| Y60. 2800cc. RD28T. Turbo. Диз. 4WD. | 1988.09-1991.10 | 2.8L DIESEL RD28T (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive PATROL GR |
DYNA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| LY161 | 1996.10-1999.05 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| LY162 | 1999.05-2001.07 | 3.0L DIESEL 5L (97 PS / 71 kW) Four-wheel drive (4WD). Right Hand Drive |
| LY161 | 1996.10-1999.05 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| LY161 | 1998.05-1999.05 | 2.0L GAS 3YP LPG (79 PS / 58 kW) Four-wheel drive (4WD). Right Hand Drive |
| LY162 | 1999.05-2001.07 | 2.0L GAS 3YP LPG (79 PS / 58 kW) Four-wheel drive (4WD). Right Hand Drive |
| LY162 | 1999.05-2001.07 | 3.0L DIESEL 5L (97 PS / 71 kW) Four-wheel drive (4WD). Right Hand Drive |
LAND CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| FJ75 | 1990.06-1992.08 | 4.0L GASOLINE 3F (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| FZJ80G | 1992.08-1996.08 | 4.5L GASOLINE 1FZFE EFI (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ70 | 1994.01-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ70V | 1994.01-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71 | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ71V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ73V | 1990.01-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ75 | 1992.12-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ77HV | 1990.04-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ77V | 1994.01-1999.08 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ79 | 1999.11-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ81V | 1990.01-1998.01 | 4.2L DIESEL 1HZ (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| PZJ70 | 1990.01-1994.01 | 3.5L DIESEL 1PZ (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| PZJ70V | 1990.01-1994.01 | 3.5L DIESEL 1PZ (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| PZJ77HV | 1990.04-1994.01 | 3.5L DIESEL 1PZ (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| PZJ77V | 1990.04-1994.01 | 3.5L DIESEL 1PZ (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |

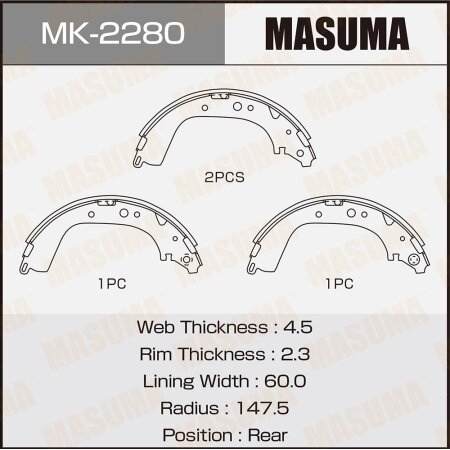

Specifications:
B, Thickness: 2.3 mm
C, Width: 60 mm
R, Radius: 147.5 mm
Masuma brake shoes are produced by the Semi-Metallic technologies using modern equipment consistent with all the recent developments in braking systems. Purposely selected friction materials ensure the shortest stopping distance, smooth and efficient braking, small and uniform wearing of the braking shoe, which doesn't produce squeak, whistle and vibration.
