Brake disk Masuma, BD-2519
EX25
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| J50. 2.5L VQ25HR. Rus. 4WD | 2011.02-2013.08 | 2.5L GASOLINE VQ25HR EGI (222 PS / 163 kW) Four-wheel drive (4WD). Left Hand Drive |
EX37
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| J50. 3.7L VQ37VHR. Rus. 4WD | 2011.01-2011.12 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 242 kW) Four-wheel drive (4WD). Left Hand Drive |
| J50. 3.7L VQ37VHR. Rus. 4WD | 2011.12-2013.08 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 242 kW) Four-wheel drive (4WD). Left Hand Drive |
FX35
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| S50. 3.5L VQ35DE. 4WD | 2005.11-2008.03 | 3.5L GASOLINE VQ35DE EGI (280 PS / 206 kW) Four-wheel drive (4WD). Left Hand Drive |
| S50. 3.5L VQ35DE | 2005.11-2008.03 | 3.5L GASOLINE VQ35DE EGI (280 PS / 206 kW) Rear-wheel drive. Left Hand Drive |
| S51. 3.5L VQ35HR. 4WD | 2008.03-2012.06 | 3.5L GASOLINE VQ35HR EGI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |
| S51. 3.5L VQ35HR | 2008.03-2012.06 | 3.5L GASOLINE VQ35HR EGI (279 PS / 205 kW) Rear-wheel drive. Left Hand Drive |
| S51. 3.5L VQ35HR. Rus. 4WD | 2008.07-2010.01 | 3.5L GASOLINE VQ35HR EGI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |
FX45
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| S50. 4.5L VK45DE. 4WD | 2005.11-2008.03 | 4.5L GASOLINE VK45DE EGI (320 PS / 235 kW) Four-wheel drive (4WD). Left Hand Drive |
G25
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| V36. 2.5L VQ25HR. Rus. | 2010.01-2013.06 | 2.5L GASOLINE VQ25HR EGI (222 PS / 163 kW) Rear-wheel drive. Left Hand Drive |
G37
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| V36. 3.7L VQ37VHR. Rus. 4WD | 2010.01-2011.12 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 243 kW) Four-wheel drive (4WD). Left Hand Drive |
| V36. 3.7L VQ37VHR. Rus. 4WD | 2011.12-2013.06 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 243 kW) Four-wheel drive (4WD). Left Hand Drive |
QX50
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| J50. 3.7L VQ37VHR. 4WD | 2008.06-2017.10 | 3.7L GASOLINE VQ37VHR EGI (329 PS / 242 kW) Four-wheel drive (4WD). Left Hand Drive |
| J50. 3.7L VQ37VHR. Rus. 4WD | 2013.09-2015.11 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 242 kW) Four-wheel drive (4WD). Left Hand Drive |
| J50. 2.5L VQ25HR. Rus. 4WD | 2013.09-2018.06 | 2.5L GASOLINE VQ25HR EGI (222 PS / 163 kW) Four-wheel drive (4WD). Left Hand Drive |
| J50. 2.5L VQ25HR. Rus. 4WD | 2013.09-2018.06 | 2.5L GASOLINE VQ25HR EGI (222 PS / 163 kW) Four-wheel drive (4WD). Left Hand Drive |
QX70
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| S51. 3.7L VQ37VHR | 2013.05-2013.09 | 3.7L GASOLINE VQ37VHR EGI (329 PS / 242 kW) Rear-wheel drive. Left Hand Drive |
| S51. 3.7L VQ37VHR. 4WD | 2013.05-2013.09 | 3.7L GASOLINE VQ37VHR EGI (329 PS / 242 kW) Rear-wheel drive. Left Hand Drive |
SKYLINE CROSSOVER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| NJ50 | 2009.07-2016.06 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 243 kW) Four-wheel drive (4WD). Right Hand Drive |
| J50 | 2009.07-2016.06 | 3.7L GASOLINE VQ37VHR EGI (330 PS / 243 kW) Rear-wheel drive. Right Hand Drive |

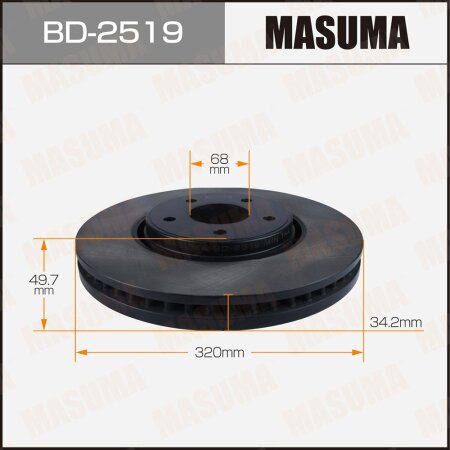

Specifications:
H, Height: 49.7 mm
H1, Brake disc thickness: 34.2 mm
L, PCD: 114.3 mm
N, Number of mounting holes: 5
d, Central hole diameter: 68 mm
Masuma brake discs are produced using high-strength cast iron with spherical graphite. The castings are produced accurately with the tolerances of just several microns, it guarantees the correct disc geometry with no vibrations during the operation.
Masuma produces two types of brake discs: ventilated and non-ventilated. The working surface of almost all the models has non-directional coating. This ensures the fast and uniform lapping after installation.
