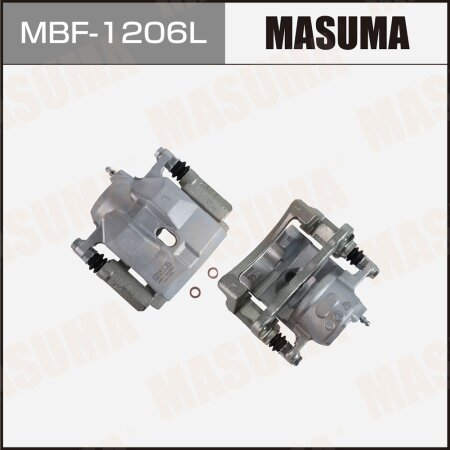

Brake caliper Masuma, MBF-1206L
CT200H
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZWA10L | 2010.12-2013.12 | 1.8L GASOLINE 5ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| ZWA10L | 2010.12-2017.07 | 1.8L GASOLINE 2ZRFXE EFI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive |
| ZWA10L | 2010.12-2022.10 | 1.8L GASOLINE 2ZRFXE EFI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive |
| ZWA10 | 2010.12-2022.10 | 1.8L GASOLINE 2ZRFXE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
PRIUS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZVW30L | 2009.04-2015.11 | 1.8L GASOLINE 2ZRFXE EFI (178 PS / 132 kW) Front-wheel drive. Left Hand Drive EUR |
| ZVW30L | 2009.04-2015.11 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| ZVW30 | 2009.04-2015.11 | 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| ZVW35L | 2009.12-2010.10 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| ZVW35L | 2009.12-2010.10 | 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive PLUG-IN HYBRID |
| ZVW35L | 2012.01-2015.06 | 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| ZVW35L | 2012.05-2016.04 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive PLUG-IN HYBRID |
| ZVW50 | 2015.11-2018.12 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| ZVW55 | 2015.11-2023.01 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZVW50L | 2015.11-2023.01 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| ZVW51 | 2015.11-2023.01 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| ZVW50L | 2018.12-2023.01 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Four-wheel drive (4WD). Left Hand Drive |
PRIUS PHV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZVW35 | 2009.12-2016.04 | 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| ZVW52L | 2016.09-2019.04 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| ZVW52 | 2016.09-2019.04 | 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
Masuma brake calipers are manufactured in full compliance with OEM specifications, allowing them to be used as direct replacements for worn original components.
Housing
Depending on the vehicle application, Masuma caliper housings are made from two types of metal:
- QT450-10 — high-strength ductile iron with nodular graphite, widely used in the automotive industry for critical cast components. The spherical graphite structure enhances strength and ductility compared to conventional gray cast iron, providing excellent impact resistance and vibration durability.
- ZL101A — an aluminum-silicon alloy with magnesium. This casting alloy enables the production of complex, high-precision shapes. It offers an excellent strength-to-weight ratio and strong corrosion resistance, making it ideal for applications where reducing unsprung mass is important.
Pistons and Guide Pins
Steel pistons (Grade 20 steel) and guide pins (Grade 45 steel) provide long service life, corrosion resistance, and stable performance across a wide temperature range.
Dust Boots
EPDM rubber dust boots are resistant to aging, ozone, and aggressive environmental factors, effectively protecting internal caliper components from water and contaminants.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
