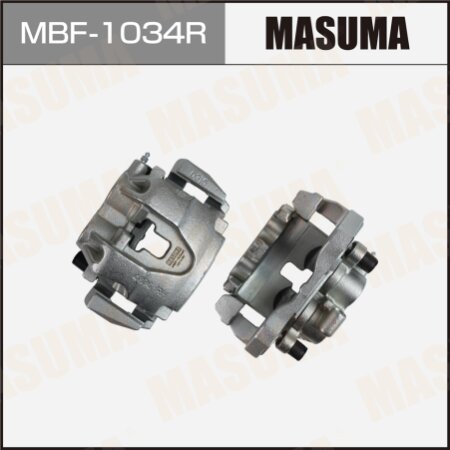

Brake caliper Masuma, MBF-1034R
This spare part fits on cars MERCEDES-BENZ
GL-CLASS (X166)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GL 350 BlueTEC 4-matic (166.824) | 2012.07-2015.12 | 3.0L DIESEL OM642.826 CDI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
| GL 350 CDI 4-matic (166.823) | 2012.07-2015.12 | 3.0L DIESEL OM642.826 CDI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
| GL 400 4-matic (166.856) | 2013.08-2015.10 | 3.0L GASOLINE M276.821 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
GLE (W166)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GLE 400 4-matic (166.056) | 2015.04-2018.10 | 3.0L GASOLINE M276.821 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
| GLE 400 4-matic (166.056) | 2015.04-2018.10 | 3.0L GASOLINE M276.825 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
| GLE 350 4-matic (166.057) | 2015.04-2018.10 | 3.5L GASOLINE M276.955 CGI (302 PS / 222 kW) Four-wheel drive (4WD). Left Hand Drive |
GLE COUPE (C292)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GLE 400 4-matic (292.356) | 2015.03-2019.10 | 3.0L GASOLINE M276.821 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
| GLE 400 4-matic (292.356) | 2015.03-2019.10 | 3.0L GASOLINE M276.825 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
GLS (X166)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GLS 350d 4-matic (166.823) | 2015.11-2019.04 | 3.0L DIESEL OM642.826 CDI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
| GLS 350d 4-matic (166.824) | 2015.11-2019.04 | 3.0L DIESEL OM642.826 CDI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
| GLS 400 4-matic (166.856) | 2015.11-2019.04 | 3.0L GASOLINE M276.821 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
M-CLASS (W166)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ML 350 4-matic (166.057) | 2011.06-2015.12 | 3.5L GASOLINE M276.955 CGI (306 PS / 225 kW) Four-wheel drive (4WD). Left Hand Drive |
| ML 400 4-matic (166.056) | 2013.08-2015.02 | 3.0L GASOLINE M276.821 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
| ML 400 4-matic (166.056) | 2013.08-2015.02 | 3.0L GASOLINE M276.825 CGI (333 PS / 245 kW) Four-wheel drive (4WD). Left Hand Drive |
Masuma brake calipers are manufactured in full compliance with OEM specifications, allowing them to be used as direct replacements for worn original components.
Housing
Depending on the vehicle application, Masuma caliper housings are made from two types of metal:
- QT450-10 — high-strength ductile iron with nodular graphite, widely used in the automotive industry for critical cast components. The spherical graphite structure enhances strength and ductility compared to conventional gray cast iron, providing excellent impact resistance and vibration durability.
- ZL101A — an aluminum-silicon alloy with magnesium. This casting alloy enables the production of complex, high-precision shapes. It offers an excellent strength-to-weight ratio and strong corrosion resistance, making it ideal for applications where reducing unsprung mass is important.
Pistons and Guide Pins
Steel pistons (Grade 20 steel) and guide pins (Grade 45 steel) provide long service life, corrosion resistance, and stable performance across a wide temperature range.
Dust Boots
EPDM rubber dust boots are resistant to aging, ozone, and aggressive environmental factors, effectively protecting internal caliper components from water and contaminants.
