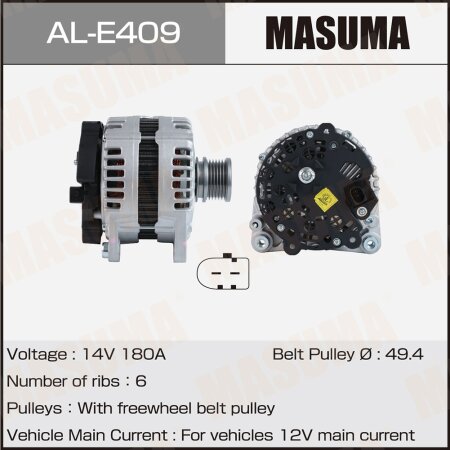

Alternator, AL-E409
Article:
AL-E409
About product
Applicability
OEM
SUPERB
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.6L CDVA. LIFTBACK | 2008.09-2015.05 | 3.6L GASOLINE CDVA FSI (260 PS / 191 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.6L CDVA. WAGON | 2010.08-2015.01 | 3.6L GASOLINE CDVA FSI (260 PS / 191 kW) Four-wheel drive (4WD). Left Hand Drive |
CRAFTER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CKTB Diesel. 3.5T. VAN | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3.T. TRUCK | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3T. TRUCK | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3T. VAN | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 5T. TRUCK | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 5T. VAN | 2011.05-2012.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3.5T. VAN | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3.T. TRUCK | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3T. TRUCK | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 3T. VAN | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 5T. TRUCK | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L CKTB Diesel. 5T. VAN | 2012.12-2016.12 | 2.0L DIESEL CKTB DI (109 PS / 80 kW) Rear-wheel drive. Left Hand Drive |
PASSAT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.6L BLV. SEDAN | 2005.09-2010.11 | 3.6L GASOLINE BLV FSI (280 PS / 206 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.6L BLV. WAGON | 2005.09-2010.11 | 3.6L GASOLINE BLV FSI (280 PS / 206 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.6L BLV. SEDAN | 2005.09-2010.11 | 3.6L GASOLINE BLV FSI (280 PS / 206 kW) Front-wheel drive. Left Hand Drive |
| 3.6L BLV. WAGON | 2005.09-2010.11 | 3.6L GASOLINE BLV FSI (280 PS / 206 kW) Front-wheel drive. Left Hand Drive |
| 3.6L BWS. SEDAN | 2007.04-2010.11 | 3.6L GASOLINE BWS FSI (300 PS / 220 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.6L BWS. WAGON | 2007.04-2010.11 | 3.6L GASOLINE BWS FSI (300 PS / 220 kW) Four-wheel drive (4WD). Left Hand Drive |
PASSAT CC
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.6L BWS. SEDAN | 2008.02-2012.01 | 3.6L GASOLINE BWS FSI (300 PS / 220 kW) Four-wheel drive (4WD). Left Hand Drive |
TRANSPORTER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CCHA Diesel. WAGON | 2009.09-2015.08 | 2.0L DIESEL CCHA DI (140 PS / 103 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CFCA Diesel. WAGON | 2009.09-2015.08 | 2.0L DIESEL CFCA DI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CCHA Diesel. WAGON | 2009.10-2015.08 | 2.0L DIESEL CCHA DI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CFCA Diesel. WAGON | 2010.01-2015.08 | 2.0L DIESEL CFCA DI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CXHA Diesel. WAGON | 2015.04-2019.12 | 2.0L DIESEL CXHA CR TC (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CXHA Diesel. WAGON | 2015.04-2019.12 | 2.0L DIESEL CXHA CR TC (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
Specifications:
Charging current from alternator (A): 180
On-board model: 12
Pulley Ø [mm]: 49.4
Voltage [V]: 14
On-board model: 12
Pulley Ø [mm]: 49.4
Voltage [V]: 14
Masuma alternators are designed for 12V vehicle electrical systems and deliver a stable output voltage of approximately 14 volts, ensuring reliable power supply under all operating conditions.
Key features of Masuma alternators:
- Compact, high-efficiency design with an internal dual-blade fan integrated into the rotor. This setup provides effective cooling, reduces overall weight, and helps minimize noise during operation.
- Durable construction using high-quality components and heat-resistant polymer materials in the rotor to withstand elevated engine bay temperatures.
- Thorough testing of every unit, including durability trials with repeated acceleration and deceleration cycles, as well as output performance measurements under various load conditions.
Each alternator product page provides detailed specifications, including:
- Output voltage and current
- Voltage regulator connector type and pin configuration
- Pulley parameters (outer diameter, number of grooves)
- Presence of a freewheel belt pulley (overrunning pulley)
